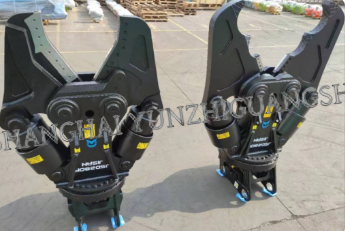

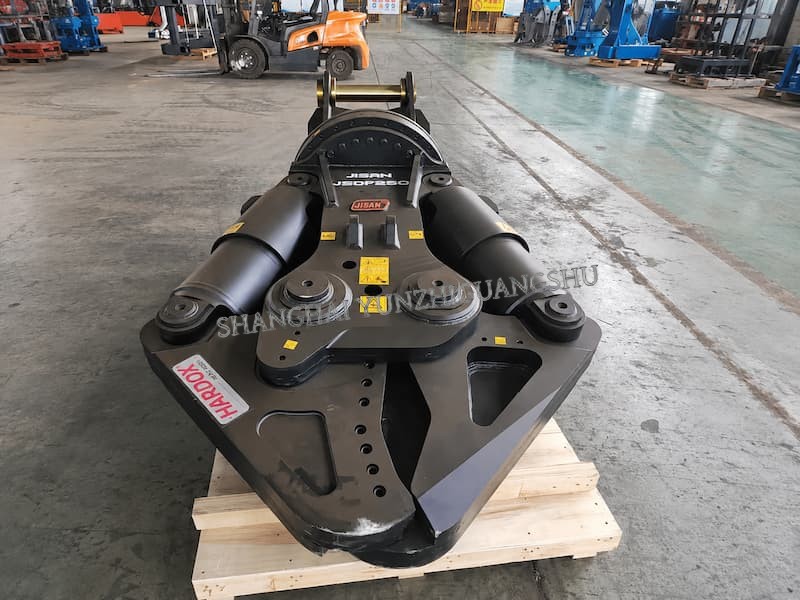

Powerful shear hydraulic double cylinder sheaer is used in steel structure demolition, scrap metal recycling,vehicle dismantling, and construction waste processing.
Item No :
hydraulic power shear JSDF40M for 3-5ton excavatorOrder(MOQ) :
1unitPayment :
50% deposite,and the balance before shipmentProduct Origin :
chinaColor :
as required by clientsShipping Port :
shanghaiLead Time :
35daysWeight :
360kgApplication:
Features:
We pass CE certificate, ISO certicate for all of our heavy-duty attachments.
It's made of HARDOX steel material from sweden and NM400, so it will be solid, durable and wear-resistant.
It's used rotating 360 hydraulic units with swivel shear.
Double cylinder synchronous power system to provide higher shearing force.
|
Item/Model |
Unit | JSDF40M | JSDF80 | JSDF220 | JSDF290-II | JSDF310 | JSDF400 | JSDF450 | JSDF550 | JSDF600 |
| Suitable Excavator | ton | 3-5 | 6-9 | 12-20 | 20-30 | 25-35 | 30-40 | 35-45 | 40-45 | 45minimum |
| Weight | kg | 360 | 750 | 1600 | 2850 | 3050 | 4050 | 4450 | 5800 | 6500 |
| Working Pressure | bar | 200 | 250 | 300 | 320 | 320 | 320 | 320 | 320 | 320 |
| Working Flow | L/min | 60 | 150 | 250 | 280 | 280 | 350 | 350 | 350 | 350 |
| Opening A | mm | 335 | 435 | 600 | 690 | 740 | 790 | 800 | 820 | 860 |
| Cutting Depth B | mm | 280 | 330 | 460 | 500 | 550 | 620 | 650 | 650 | 720 |
| Overall Length C | mm | 1160 | 1420 | 1899 | 2210 | 2345 | 2590 | 2700 | 3010 | 3167 |
| Blade Length D1/D2 | mm | 180+130 | 210+155 | 300+210 | 300+260 | 350+260 | 350+330 | 350+360 | 380+360 | 400+360 |
| Shearing Force a | ton | 37 | 62 | 108 | 150 | 156 | 250 | 260 | 300 | 320 |
| Shearing Force b | ton | 24 | 43 | 75 | 100 | 118 | 150 | 160 | 170 | 180 |
| Rotation Diameter | mm | 360 | 593 | 752 | 752 | 806 | 806 | 922 | 922 |
Powerful shear hydraulic double cylinder sheaer is used in steel structure demolition, scrap metal recycling,vehicle dismantling, and construction waste processing. We adopt industrial-grade wear-resistant steel NM400, upgraded sealing system,so that it provides superior durability and consistent output.
