We're speciallized in researching the producing the long reach arm & boom for long-reach working.
We have devided into two types.
Standard type: dredging channel,finishing slope,deep cut mining.
Enhanced type: hard soil mining and gravel loading and unloading.
Item No :
long reach arm & boom BOY30 for 30ton excavatorOrder(MOQ) :
1 unitPayment :
50% deposite and the balance before shipmentProduct Origin :
chinaColor :
as clients requiredShipping Port :
shanghaiLead Time :
35daysWeight :
5200kgApplication:

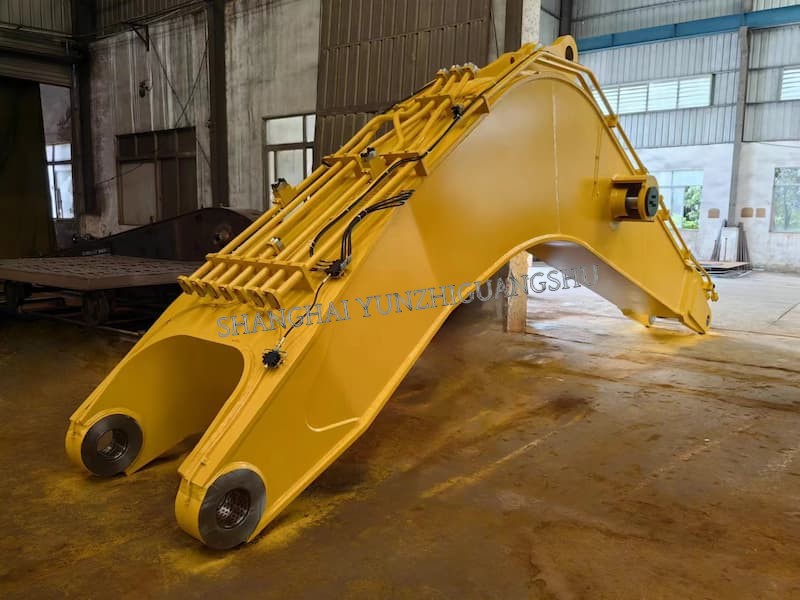

Long reach arm & boom is for 30ton excavator.
It's designed as an extended arm & boom assembly,and can work in deep foundation pits and high structure working.
It use own hydraulic system to supply the working source.
Features:
360° rotating motor.
CE certificate and ISO certificate.
Q355B,Q550D,Q690 steel material.
| 机重Models | 12T | 20T | 22T | 30T | 35T | 40T | 45T | 70T | 100-125T |
| 动臂和斗杆总长(mm) Total length |
13000 | 15380 | 16500 | 18000 | 20000 | 22000 | 24000 | 25000 | 2800 |
| 工作重量(Kg,参考) Weight |
3000 | 4000 | 4500 | 5200 | 6000 | 6500 | 7000 | 12000 | 20000 |
| 斗容量(m³) Bucket capacity |
0.3 | 0.45 | 0.45 | 0.65 | 0.65 | 0.8 | 0.8 | 1.5 | 2.5 |
| 最大挖掘高度(mm,参考 )Max.digging height |
11300 | 12500 | 14700 | 15700 | 15300 | 17000 | 20000 | 19500 | 23000 |
| 最大外伸挖掘范围(mm,参考) Max.digging reach |
12500 | 15000 | 16900 | 18600 | 20000 | 22600 | 23500 | 23700 | 27000 |
| 最大挖掘深度(mm,参考) Max.digging depth |
9000 | 11300 | 12500 | 13900 | 15900 | 18000 | 18000 | 17700 | 21000 |
| 运输高度(mm,参考) Transport height |
2900 | 3000 | 3050 | 3200 | 3250 | 3350 | 3400 | 4000 | 5500 |
| 附加配重(Kg) Additional counterweight |
根据各厂家机型和工况商定 Agreed according to the model and working condition of each manufacturer |
||||||||
Long reach arm & boom is an extended tool for excavator for dredging, slope trimming and deep digging. It has standard type and enhanced type. Standard type is for dredging channel,finishing slope,deep cut mining. Enhanced type is for hard soil mining and gravel loading and unloading.
View More
Standard excavator booms has limited working range.So we customize the long reach arm & boom to meet the operational demands. It has two types, standard type or enhanced type. Standard type work in dredging channel,finishing slope,deep cut mining. Enhanced type work in hard soil mining and gravel loading and unloading.
View More
We customize the long reach arm & boom for long-reach working. It includes two types of standard type or enhanced type. Standard type is used in dredging channel,finishing slope,deep cut mining. Enhanced type is used in hard soil mining and gravel loading and unloading.
View More
We're speciallized in researching the producing the long reach arm & boom for long-reach working. We have devided into two types. Standard type: dredging channel,finishing slope,deep cut mining. Enhanced type: hard soil mining and gravel loading and unloading.
View More
