We customize the long reach arm & boom for long-reach working.
It includes two types of standard type or enhanced type.
Standard type is used in dredging channel,finishing slope,deep cut mining.
Enhanced type is used in hard soil mining and gravel loading and unloading.
Item No :
long reach arm & boom BOY20 for 20ton excavatorOrder(MOQ) :
1 unitPayment :
50% deposite and the balance before shipmentProduct Origin :
chinaColor :
as clients requiredShipping Port :
shanghaiLead Time :
35daysWeight :
4000kgApplication:

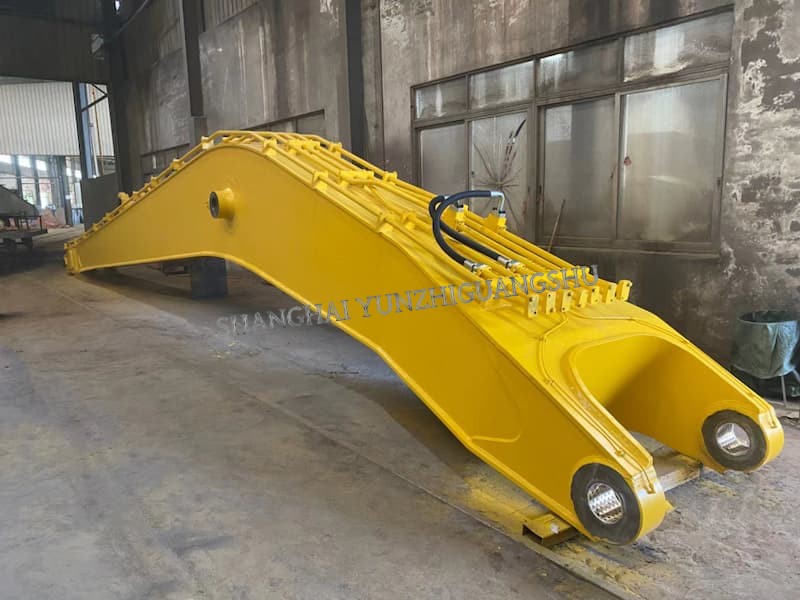

Long reach arm & boom is for 20ton excavator.
It's a specially designed extended arm & boom assembly,and has an for deep foundation pits and high structure working.
Its own hydraulic system supply the working source.
Features:
It is 360° rotation motor.
We have CE certificate and ISO certificate together.
It is made of Q355B,Q550D,Q690 steel material.
| 机重Models | 12T | 20T | 22T | 30T | 35T | 40T | 45T | 70T | 100-125T |
| 动臂和斗杆总长(mm) Total length |
13000 | 15380 | 16500 | 18000 | 20000 | 22000 | 24000 | 25000 | 2800 |
| 工作重量(Kg,参考) Weight |
3000 | 4000 | 4500 | 5200 | 6000 | 6500 | 7000 | 12000 | 20000 |
| 斗容量(m³) Bucket capacity |
0.3 | 0.45 | 0.45 | 0.65 | 0.65 | 0.8 | 0.8 | 1.5 | 2.5 |
| 最大挖掘高度(mm,参考 )Max.digging height |
11300 | 12500 | 14700 | 15700 | 15300 | 17000 | 20000 | 19500 | 23000 |
| 最大外伸挖掘范围(mm,参考) Max.digging reach |
12500 | 15000 | 16900 | 18600 | 20000 | 22600 | 23500 | 23700 | 27000 |
| 最大挖掘深度(mm,参考) Max.digging depth |
9000 | 11300 | 12500 | 13900 | 15900 | 18000 | 18000 | 17700 | 21000 |
| 运输高度(mm,参考) Transport height |
2900 | 3000 | 3050 | 3200 | 3250 | 3350 | 3400 | 4000 | 5500 |
| 附加配重(Kg) Additional counterweight |
根据各厂家机型和工况商定 Agreed according to the model and working condition of each manufacturer |
||||||||
Long reach arm & boom is an extended tool for excavator for dredging, slope trimming and deep digging. It has standard type and enhanced type. Standard type is for dredging channel,finishing slope,deep cut mining. Enhanced type is for hard soil mining and gravel loading and unloading.
