Secondary pulverizer is an attachment designed for secondary on-site crushing and recycling concrete.
We're professional factory who has OEM many named brand of Europe,Russia, America, Austraulia and inland companies.
Item No :

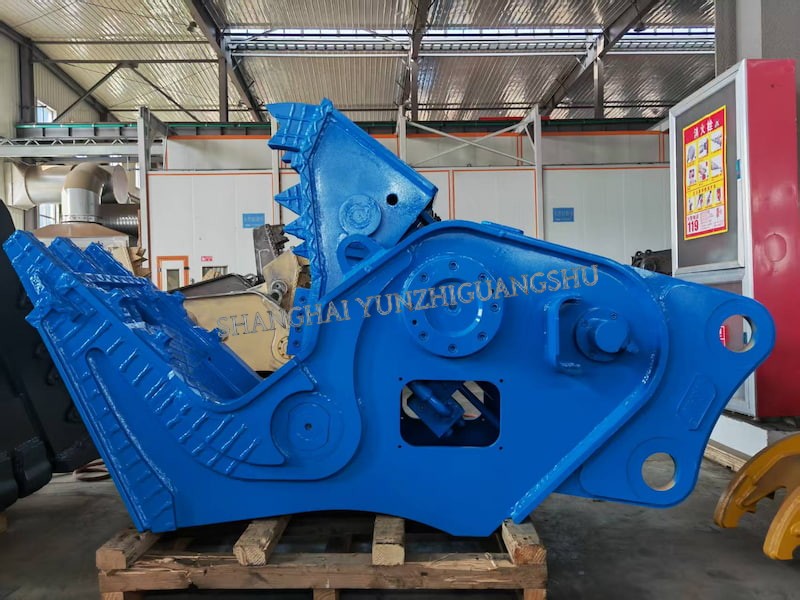

pulverizer JSP230D for 20-30ton excavatorOrder(MOQ) :
1 unitPayment :
50% deposit and the balance before shipmentProduct Origin :
chinaColor :
as client requiredShipping Port :
shanghaiLead Time :
35daysWeight :
1700kgApplication:
We design the pulverizer for secondary crushing concrete easily.
It's used to process coarse concrete fragments after primary demolition.
It can provide precise grinding force, separating concrete from residual steel rebars.
Features:
NM400 stell material.
Cylinder + speed valve to assure fast cycle.
Low maintenance cost and long time life.
| Item/Model | Unit | Rotating Powerful Type | Magnet Type | Cylinder Reversed Type | Cylinder Hinged Type | |||||||
| JSRP80 | JSRP180 | JSRP220 | JSRP280 | JSP220-II M600 | JSP230-II M600 | JSP80C | JSP230-II C | JSP245C | JSP150D | JSP230D | ||
| Suitable Excavator | ton | 5-10 | 12-18 | 20-30 | 25-40 | 20-24 | 26-30 | 6-9 | 26-30 | 26-32 | 9-16 | 20-30 |
| Weight | kg | 670 | 1300 | 2250 | 2660 | 2000 | 2330 | 480 | 1750 | 2050 | 1000 | 1700 |
| Opening A | mm | 510 | 610 | 750 | 880 | 800 | 830 | 500 | 830 | 1000 | 700 | 810 |
| Blade Length B | mm | 140 | 140 | 180 | 260 | 180 | 170 | 130 | 170 | 230 | 130 | 230 |
| Length C | mm | 1645 | 2050 | 2406 | 2584 | 2275 | 1891 | 1525 | 1891 | 2600 | 1829 | 2267 |
| Width D | mm | 395 | 440 | 613 | 618 | 600 | 600 | 450 | 525 | 610 | 510 | 590 |
| Crushing Force | ton | 43 | 80 | 120 | 150 | 80 | 82 | 40 | 82 | 110 | 65 | 95 |
| Working Pressure | bar | 280 | 280 | 320 | 320 | 300 | 300 | 200 | 300 | 320 | 250 | 320 |
| Working Flow | lpm | 100 | 150 | 200 | 250 | 200 | 200 | 100 | 200 | 200 | 150 | 200 |
| Outer Diameter E | mm | - | - | - | - | 600 | 600 | - | - | - | - | - |
| Rotating Motor Pressure | bar | 120 | 120 | 120 | 120 | - | - | - | - | - | - | - |
| Rotating Motor Flow | lpm | 40-60 | 40-60 | 40-60 | 40-60 | - | - | - | - | - | - | - |
Hydraulic pulverizer JSP150D is cylinder hinged type. It's used for 9-16ton excavator for secondary crushing the concrete.
View More
Secondary pulverizer is an attachment designed for secondary on-site crushing and recycling concrete. We're professional factory who has OEM many named brand of Europe,Russia, America, Austraulia and inland companies.
View More
JSP245C Pulverizer is designed for excavators to crush concrete and recycle construction waste. It's cylinder reversed type for 26-32ton excavator. Our pulverizer used NM400 steel material to assure heavy-duty demolition work.
