hydraulic concrete pulverizer JSP150D for 9-16ton excavator
concrete secondary pulverizer NM400 for 9-16ton excavator
secondary pulverizer concrete crushing JSP150D

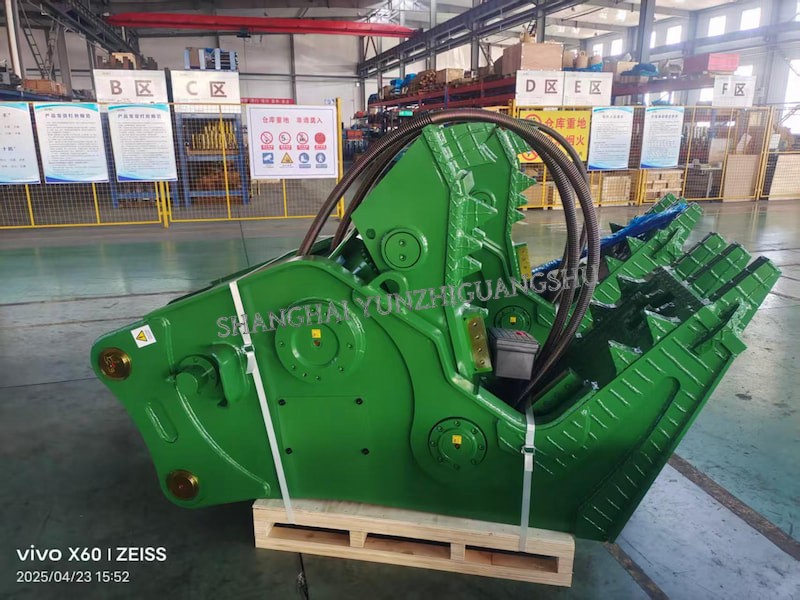

hydraulic pulverizer JSP150D for 9-16ton excavator

Hydraulic pulverizer JSP150D is cylinder hinged type.

It's used for 9-16ton excavator for secondary crushing the concrete.

  • Item No :

    pulverizer JSP150D for 9-16ton excavator

  • Order(MOQ) :

    1 unit

  • Payment :

    50% deposit and the balance before shipment

  • Product Origin :

    china

  • Color :

    as client required

  • Shipping Port :

    shanghai

  • Lead Time :

    35days

  • Weight :

    1000kg
Inquire Now

Application:

Hydraulic secondary pulverizer is designed to crush concrete after primary crusher. The strcture design make it seperate the concrete with rebar easily.



Features:

We use NM400 to ensure wear-resistance.

Cylinder with a speed valve to work fast cycle.

The blade can cut the concrete easily.

360 degree rotary.

Low maintenance and long time use life.



hydraulic pulverizer JSP150D for 9-16ton excavator





Item/Model Unit Rotating Powerful Type Magnet Type Cylinder Reversed Type Cylinder Hinged Type
JSRP80 JSRP180 JSRP220 JSRP280 JSP220-II M600 JSP230-II M600 JSP80C JSP230-II C JSP245C JSP150D JSP230D
Suitable Excavator ton 5-10 12-18 20-30 25-40 20-24 26-30 6-9 26-30 26-32 9-16 20-30
Weight kg 670 1300 2250 2660 2000 2330 480 1750 2050 1000 1700
Opening A mm 510 610 750 880 800 830 500 830 1000 700 810
Blade Length B mm 140 140 180 260 180 170 130 170 230 130 230
Length C mm 1645 2050 2406 2584 2275 1891 1525 1891 2600 1829 2267
Width D mm 395 440 613 618 600 600 450 525 610 510 590
Crushing Force ton 43 80 120 150 80 82 40 82 110 65 95
Working Pressure bar 280 280 320 320 300 300 200 300 320 250 320
Working Flow lpm 100 150 200 250 200 200 100 200 200 150 200
Outer Diameter E mm - - - - 600 600 - - - - -
Rotating Motor Pressure bar 120 120 120 120 - - - - - - -
Rotating Motor Flow lpm 40-60 40-60 40-60 40-60 - - - - - - -
