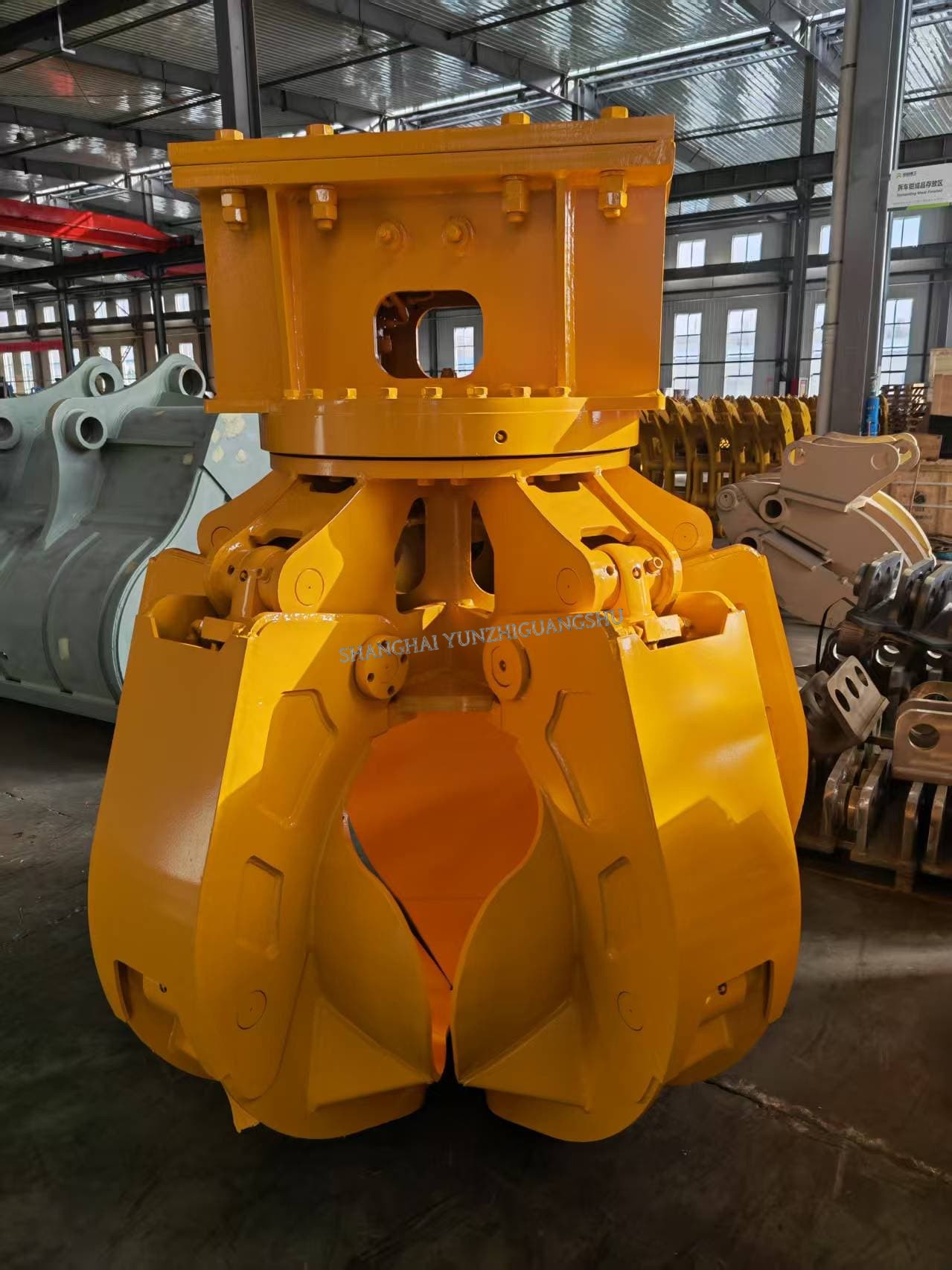

Orange peel grapple is a wide grab attachment of excavator to load nad unload bulk stone,steel and wast materials.
It can suit from 6ton to 35tons.
Has many types to choose and optional 4/5 claw design.
Item No :
orange peel grapple JSOG80AR for 6-9ton excavatorOrder(MOQ) :
1 unitPayment :
50% deposite and the balance before shipmentProduct Origin :
chinaColor :
as clients requiredShipping Port :
shanghaiLead Time :
35daysWeight :
450kgApplication:

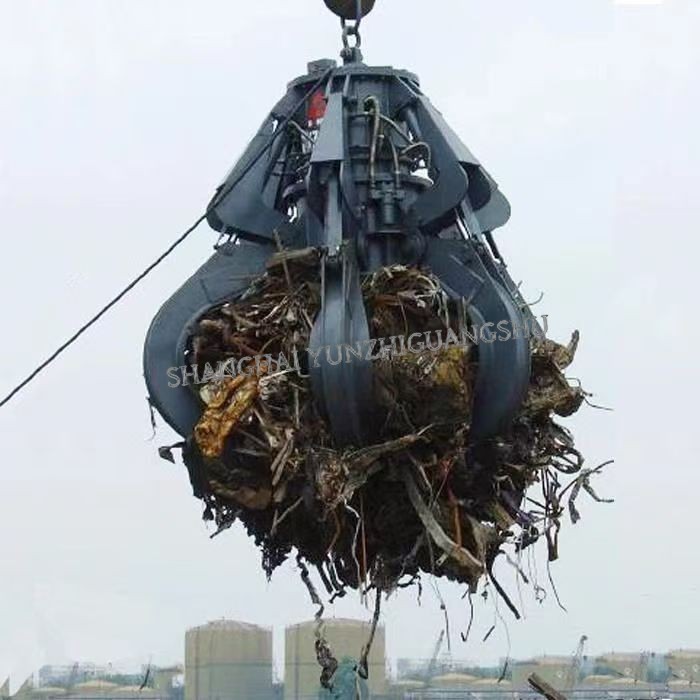

Hydraulic orange peel grapple has application for bulk stone,scrap steel recycling,iron fragments and metal waste.
It has 4 or 5 claw to choose according your working condition. We will help you to design.

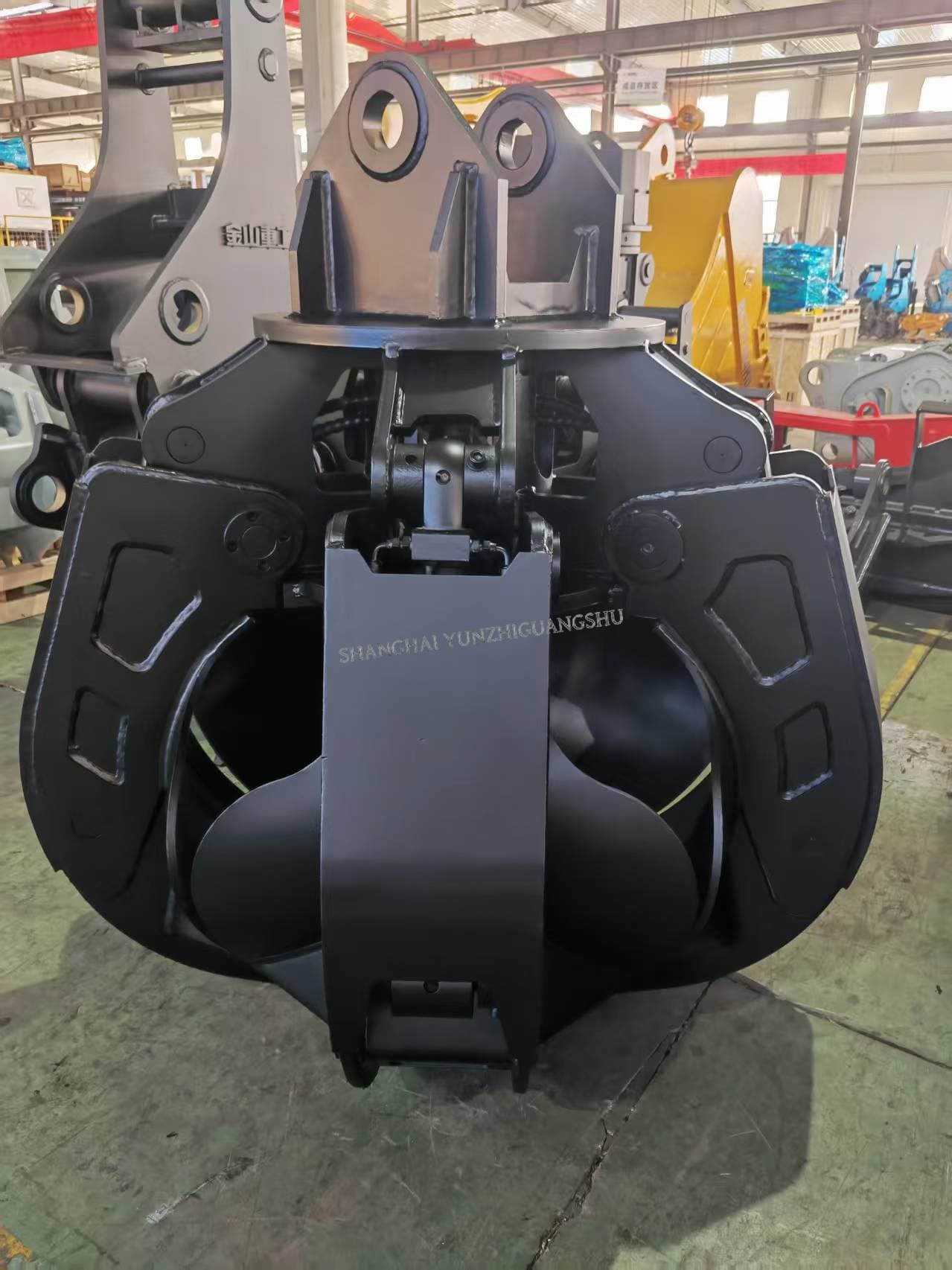

JSOG80AR is heavy-duty,rotating type orange peel grapple.
Features:
360° rotation optional.
We use high-strength NM400 steel material to assure ligh-weight and wear-resistant.
CE certificate and ISO certificate can be provided.
The pins are made of 42CrMo alloy steel heat-treated.

| Item/Model | |
JSOG80AR | JSOG150AR | JSOG200AR | JS0G150BS | JSOG200BS | JSOG300BS |
| Suitable Excavator | ton | 6-9 | 9-16 | 18-30 | 9-16 | 18-26 | 20-35 |
| Weight | kg | 450 | 1000 | 2100 | 1000 | 1500 | 1950 |
| HeightA | mm | 1486 | 1648 | 1870 | 2250 | 2680 | 3050 |
| Width B | mm | 1000 | 1260 | 1534 | 1180 | 1352 | 1590 |
| openingc | mm | 1200 | 1600 | 2050 | 1800 | 2200 | 2600 |
| Working Pressure | bar | 220 | 250 | 280 | 250 | 280 | 300 |
| Working Flow | lpm | 100 | 160 | 220 | 160 | 220 | 240 |
| Capacity | m³ | 0.3 | 0.6 | 0.8 | 0.6 | 1 | 1.2 |
| Rotation Diameter | mm | 593 | 752 |
