Our hydraulic eagle shear is designed for those steel demolition and recycling.
We have gained the good feedback from European and Australian clients.
Item No :
JS80RT for 6-9ton excavatorOrder(MOQ) :
1 unitPayment :
50% deposit,and the balance before shipmentProduct Origin :
chinaColor :
customer demandShipping Port :
shanghaiLead Time :
35daysWeight :
560kgApplication:

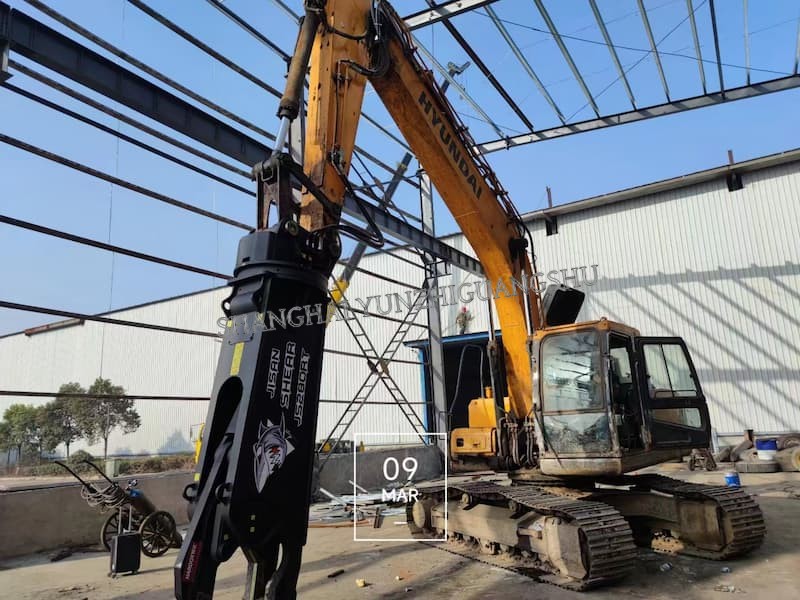

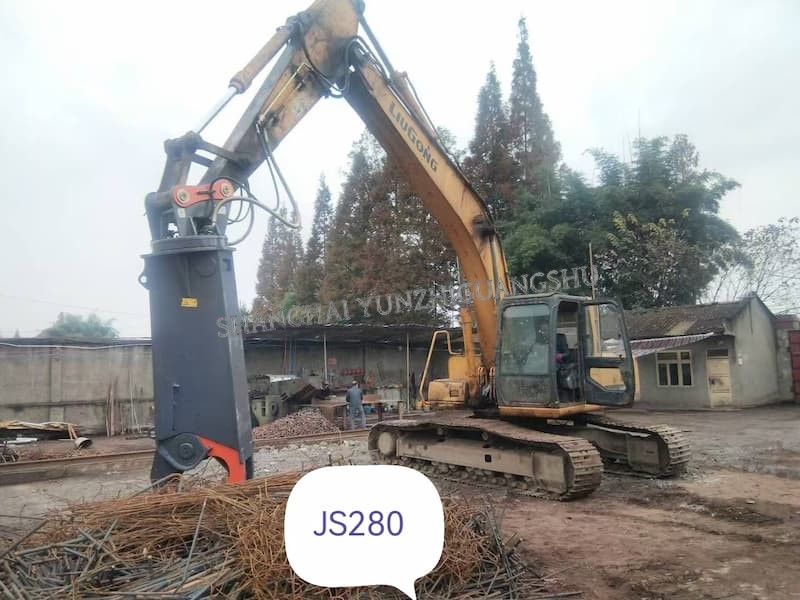

Hydraulic eagle shear is used in demolishing steel structure building,tower, hulk, heavy truck and metal scraps.
Features:
It's made of Hardox steel+NM400 steel.
The pins are used 42CrMo alloy steel.
We got ISO certificate and CE certificate.
360° rotation with speed valve makes the shear work flexible and fast.
| Item/Model | Unit | JS40RT | JS80RT | JS150RT | JS280RT | JS380RT | JS400RT | JS450RT | JS500RT | JS800RT |
| Arm Installation | ton | 3-5 | 6-9 | 12-18 | 20-28 | 30-38 | 36-45 | 40-50 | 46-60 | 60-80 |
| Boom Installation | ton | - | - | - | - | 20-38 | 26-45 | 30-50 | 36-60 | 50-80 |
| Working Pressure | bar | 200 | 200 | 250-300 | 280-320 | 300-320 | 320-350 | 320-350 | 320-350 | 320-350 |
| Working Flow | lpm | 80 | 100 | 150 | 180-220 | 200-250 | 200-250 | 250-300 | 250-300 | 300-360 |
| Weight | kg | 420 | 580 | 1350 | 2450 | 3800/4200 | 5600/5900 | 6100/6500 | 6500/6800 | 8500/8800 |
| Rotating Flow | lpm | 20 | 30 | 30-40 | 30-40 | 30-40 | 30-40 | 30-40 | 30-40 | 50-60 |
| Rotating Pressure | bar | 100 | 100 | 90-100 | 100-115 | 100-115 | 100-115 | 100-115 | 100-115 | 140-150 |
| Opening A | mm | 200 | 302 | 389 | 500 | 600 | 663 | 702 | 816 | 922 |
| Cutting Depth B | mm | 200 | 311 | 417 | 530 | 630 | 680 | 729 | 800 | 900 |
| Full Length | mm | 1450 | 1790 | 2100 | 3030 | 3450/4600 | 4400/5100 | 4550/5250 | 4600/5300 | 5000/5700 |
| Rotation Diameter | mm | 360 | 360 | 593 | 752 | 806 | 922 | 922 | 922 | 1022 |
Hydraulic eagle shear is specially designed for scrap steel demolition, especially for recycling work. With Hardox steel material, it can cut those hard and tough steel.
View More
Our hydraulic eagle shear is designed for those steel demolition and recycling. We have gained the good feedback from European and Australian clients.
View More
Hydraulic eagle shear is used for scrap steel recycling operation,steel structure building. The Hardox steel material from Sweden make it can cut the tough steel efficiently.
