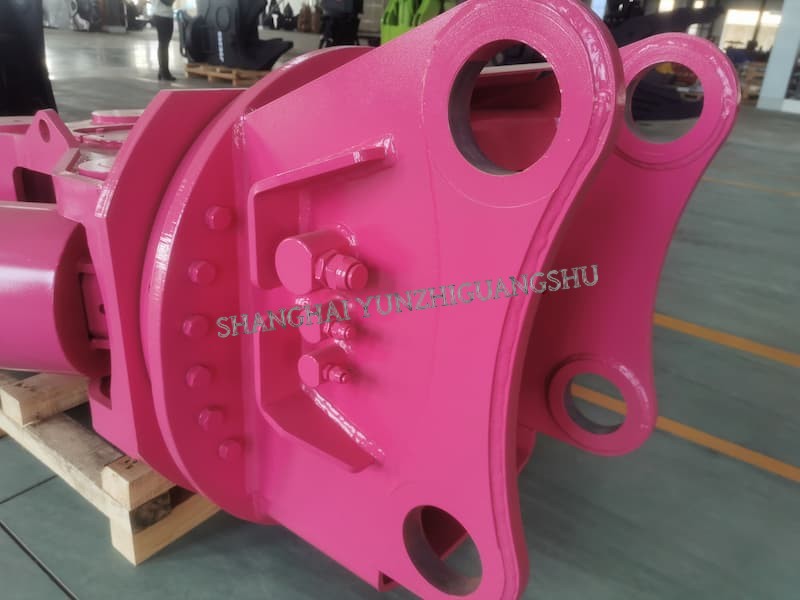

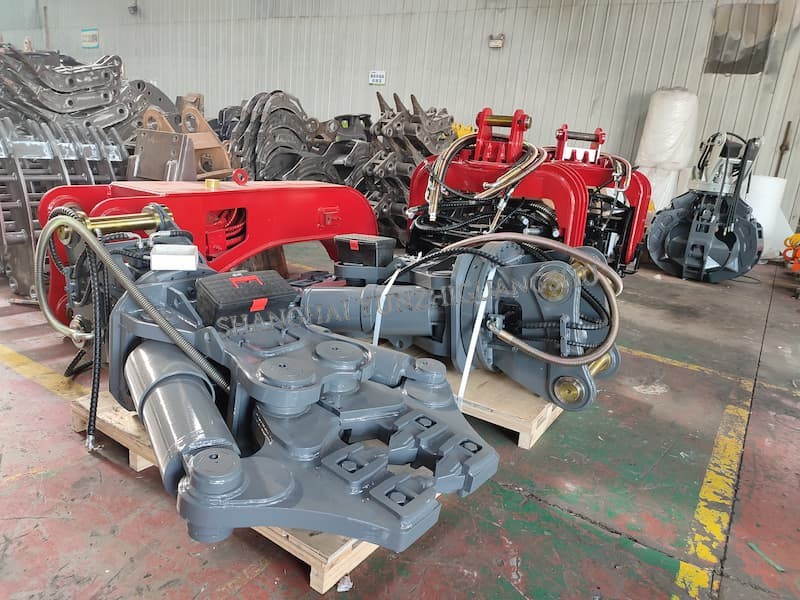

Hydraulic concrete crusher JSDS300 is for 30-38ton excavator crushing concrete in high building.
We use NM400 to assure high strength.
Equipped with two cylinder and replaceable blades, 360° rotation to assure work high efficency.
JSDS300 is for 30-38ton excavator primary crushing in high building concrete,and seperate from the rebar.
Item No :
concrete crusher JSDS300 for 30-38ton excavatorOrder(MOQ) :
1unitPayment :
50% deposite and the balance before shipmentProduct Origin :
chinaColor :
as clients requiredShipping Port :
shanghaiLead Time :
35daysWeight :
2320kgApplication:
Our concrete crusher is applicated in crushing concrete, cement blocks, construction demolition,
reinforced concrete, road rubble, stone and bricks.
Feature:
It's made of NM400 steel with heavy-duty strength and wear-resistance.
We use double cylinder with speed valve, that it can be more powerful to crush efficiently.
360 degree rotary device with swivel to work fast.
Steamlined hydraulic system can reduce maintance cost.
The cutting blocks are resistant high tempreture and reformation.
| Item/Model | Unit | JSDH80 | JSDH80M | JSDH220 | JSDH220M | JSDH260 | JSDH260M | JSDH290 | JSDH290M | JSDH380M |
| Suitable Excavator | ton | 6-9 | 6-9 | 12-18 | 12-18 | 20-30 | 20-30 | 25-35 | 25-35 | 30-45 |
| Weight | kg | 535 | 510 | 1300 | 1280 | 2190 | 2100 | 2470 | 2400 | 3940 |
| Working Pressure | bar | 240 | 240 | 300 | 300 | 320 | 320 | 320 | 320 | 320 |
| Working Flow | L/min | 150 | 150 | 250 | 250 | 280 | 280 | 280 | 280 | 350 |
| Opening A | mm | 630 | 630 | 900 | 900 | 1100 | 1100 | 1100 | 1100 | 1550 |
| Overall Length B | mm | 1466 | 1363 | 1959 | 1904 | 2289 | 2269 | 2289 | 2269 | 2900 |
| Blade Length D | mm | 135 | 135 | 180 | 180 | 200 | 200 | 200 | 200 | 240 |
| Shearing Force a | ton | 120 | 120 | 190 | 190 | 240 | 240 | 240 | 240 | 350 |
| Crushing Force b/c | ton | 67/43 | 67/43 | 112/72 | 112/72 | 146/98 | 146/98 | 161/108 | 161/108 | 211/138 |
| Rotation Diameter | mm | 360 | 360 | 593 | 593 | 752 | 752 | 752 | 752 | 806 |
Hydraulic concrete crusher JSDS80 is for crushing concrete for high building. We equip two cylinder with replaceable blades, 360° rotation, it can work efficently. JSDS80 is for 6-9ton excavator in high building concrete,and seperate from the rebar.
View More
We offer concrete crusher JSDS200 for concrete demolition work of high building. We use NM400, two cylinder and replaceable blades, 360° rotating device to work efficently. JSDS150 is for 12-18ton excavator to seperate concrete from the rebar.
View More
Hydraulic concrete crusher JSDS200 is for crushing concrete for high building. With two cylinder and replaceable blades, NM400 high steel quality material,360° rotation, it can work efficently. JSDS200 is for 20-28ton excavator demolition in high building concrete,and seperate from the rebar.
View More
Hydraulic concrete crusher JSDS300 is for 30-38ton excavator crushing concrete in high building. We use NM400 to assure high strength. Equipped with two cylinder and replaceable blades, 360° rotation to assure work high efficency. JSDS300 is for 30-38ton excavator primary crushing in high building concrete,and seperate from the rebar.
View More
